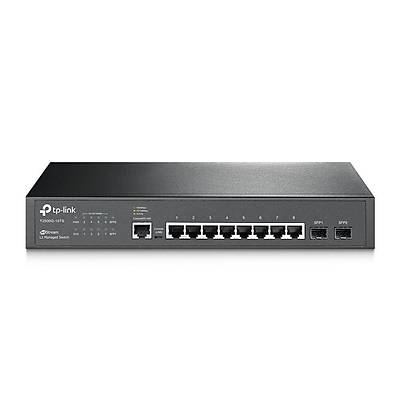

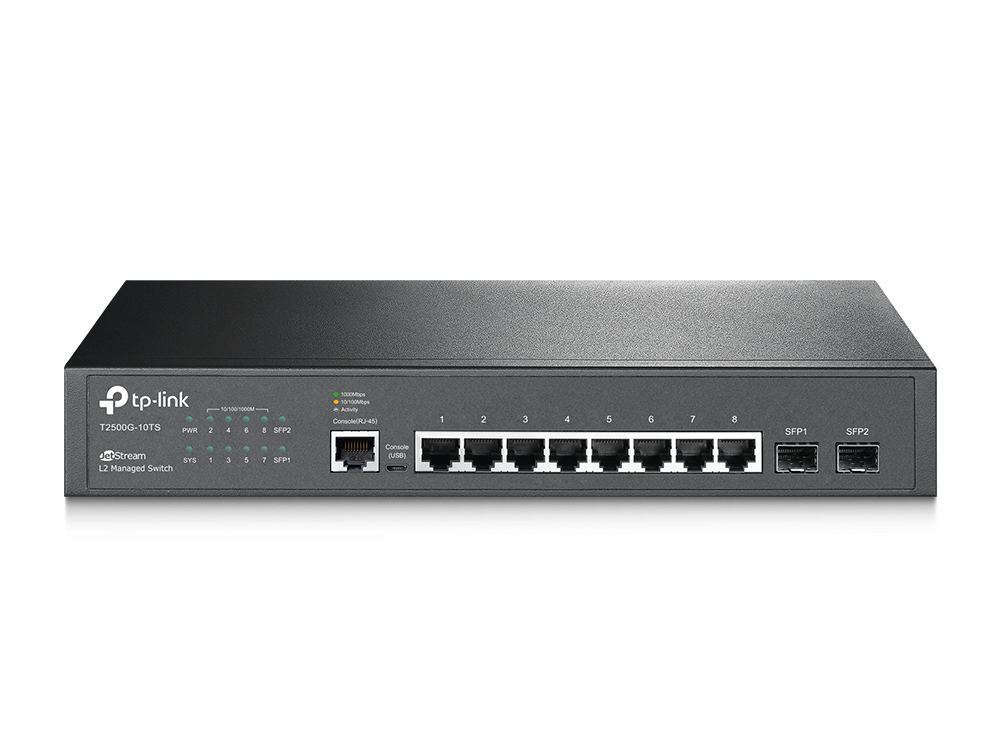

TP-LINK TL-SG3210 10 PorT 10/100/1000 2 Gigabit SFP Y

Standartlar ve Protokoller IEEE 802.3i,IEEE 802.3u,IEEE
802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
Arabirim 8 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots
1 Console Port
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum
100m)
1000BASE-X: MMF, SMF
Fan Sayısı Fanless
Güç Kaynağı 100~240VAC, 50/60Hz
Güç Tüketimi Maximum: 10.7W (220V/50Hz)
Boyutlar ( W X D X H ) 11.6*7.9*1.7in. (294*200*44 mm)
PERFORMANS
Bandwidth/Backplane 20Gbps
Paket Yönlendirme Hızı 14.9Mpps
MAC Adres Tablosu 8k
Paket Buffer Belleği 4Mb
Jumbo Frame 10240 Bytes
YAZILIM ÖZELLİKLERİ
Quality of Service Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Özellikleri IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
Port isolation
BPDU filtering/guard
TC/Root protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration
Erişim Kontrol Listesi L2~L4 package filtering based on source and
destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP,
protocol and VLAN ID;
Time Range Based
Güvenlik IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Uygulamaları DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Yönetim Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS


Port Tipi	LC/UPC
Fan Sayısı (Adet)	10,0
Veri Transfer Hızı	10/100/1000
Connector Tipi	RJ-45
Port Sayısı (Adet)	10,0
Forwarding Hızı	14.9 Mbps
Yönetim	Evet
Güç Girişi	3.3V
Kablo Uzunluğu	1 Metre
Boyutlar	11.6 X 7.9 X 1.7 inç
Satış Garanti Süresi (ay)	36
EAN	6935364098490
