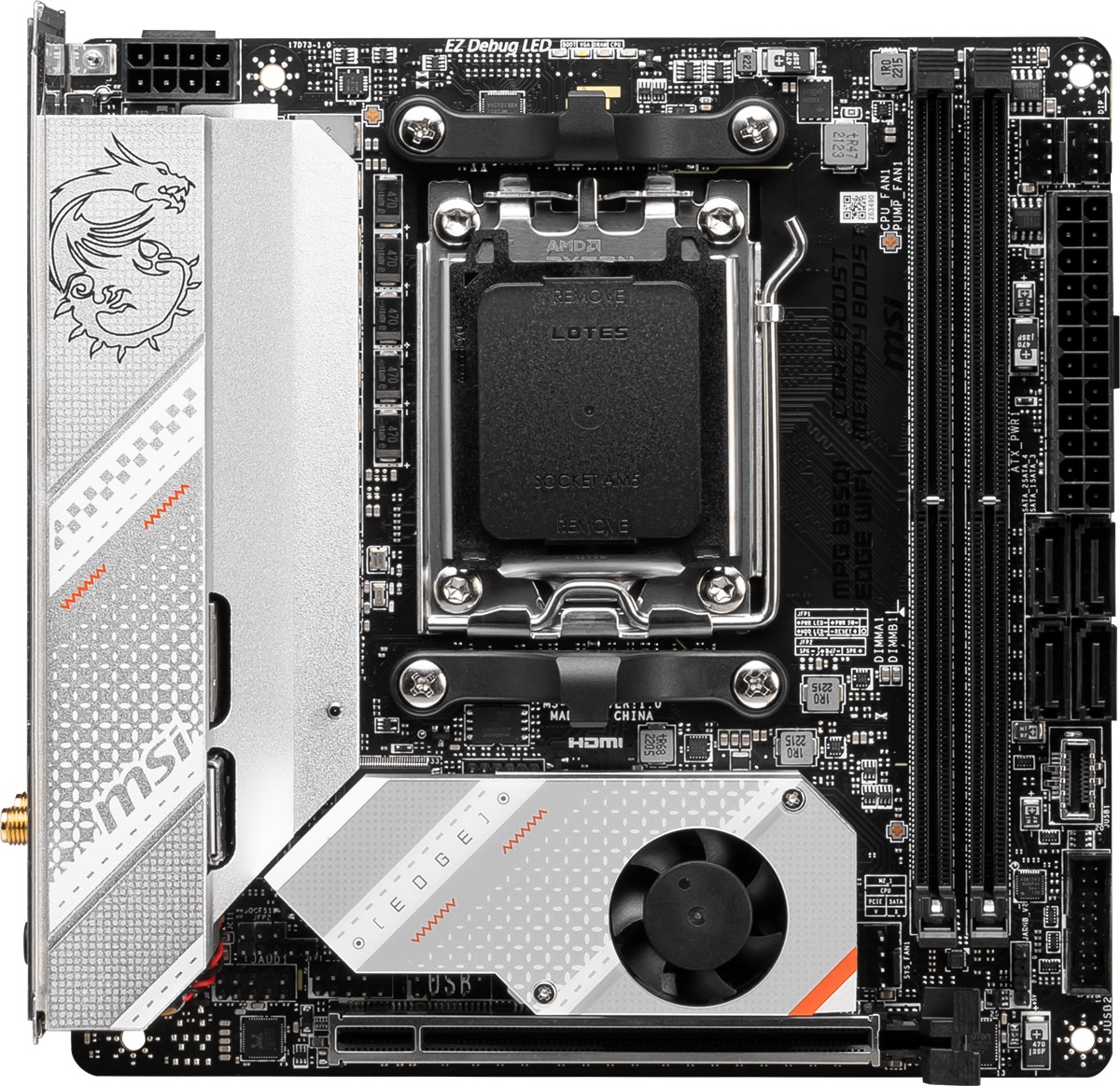

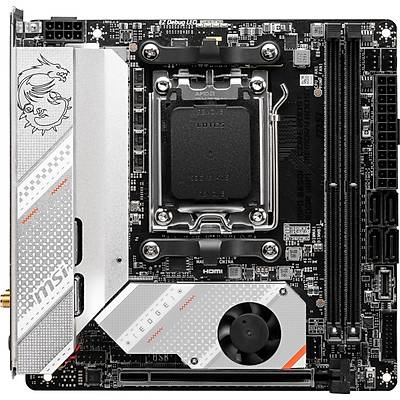

MSI MB MPG B650I EDGE WIFI AM5 DDR5 7200MHZ(OC) HDMI M.2 USB3.2 2.5G LAN WIFI 6E Mini-ITX

Ürün özellikleri

İşlemci
İşlemci üreticisi
The manufacturer that produced the processor.
AMD
İşlemci soketi
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Soket AM5
İşlemcilerle uyumlu
A processor which is compatible with this device
AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Desteklenen işlemci prizleri
The sockets (plugs) for processors that are supported (can be used) by the device.
Soket AM5
Hafıza
Destekli hafıza türü
Types of memory which can be used with the product.
DDR5-SDRAM
Bellek yuvalarının sayısı
2
Non-ECC
Destekli hafıza saati hızı
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maksimum bellek
Bilgisayarlarda kullanılan bu bellek saniyede yüzlerce bilgiyi günceller ve devreleri tazeler.
64 GB
Depolama yöneticisi
Desteklenen depolama sürücüsü arayüzleri
M.2, SATA
RAID seviyesi
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Dahili I/O
USB 2.0 bağlayıcıları
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
USB 3.2 Gen 1 (3.1 Gen 1) konnektörleri
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
2
Ön panel ses bağlayıcısı
Ön panel konektörü
ATX güç bağlayıcı (24-pin)
CPU fan bağlayıcı
Şasi giriş bağlayıcı
Arka panel I/O portları
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
2
USB 3.2 Gen 2 (3.1 Gen 2) Tip-A port sayısı
3
USB 3.2 2x2 C tipi portların sayısı
1
Ethernet LAN (RJ-45) port sayısı
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
HDMI port sayısı
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
HDMI versiyonu
2.1
Kulaklık çıktı sayısı
Number of sockets /ports where headphones are connected.
1
Arka panel I/O portları
Kablo girişi
Mikrofon giriş fişi
The socket where a microphone is connected to the device.
Ağ Bağlantıları
Ethernet LAN bağlantısı
An Ethernet LAN (Local Area Network) interface is present
Ethernet arayüz türü
2.5 Gigabit Ethernet
LAN kontrolörü
Realtek RTL8125B
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standardı
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6E (802.11ax)
Wi-Fi standartları
The type of wireless local area network (LAN). It can be ad-hoc
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers
Bluetooth versiyonu
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.2
Özellikler
Anakart yongası
The chipset connects the microprocessor to the rest of the motherboard.
AMD B650
Ses çipi
Realtek ALC4080
Ses çıkış kanalı sayısı
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 kanallar
PC sağlıklı gözleme
Fan
Bileşen
What this product is used as a part of (component for).
PC
Anakart form faktörü
Design of the motherboard (ATX
mini ATX
Analevha yonga kümesi ailesi
The category of motherboard chipset e.g. Intel
AMD
Desteklenen Windows çalışma sistemleri
Windows vesions wich can be used with the device.
Windows 10 x64
Genişletme yuvaları
PCI Express x16 (Gen 3.x) yuvası
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
1
M.2 (M) yuvalarının sayısı
2
Ağırlık & boyutlar
Genişlik
The measurement or extent of something from side to side.
170 mm
Derinlik
The distance from the front to the back of something.
170 mm
