| PERFORMANCE |
| Processor |
Intel® Core i7-13700, 16C (8P + 8E) / 24T, Max Turbo up to 5.2GHz, P-core 2.1 / 5.1GHz, E-core 1.5 / 4.1GHz, 30MB |
| Graphics |
Integrated Intel® UHD Graphics 770 |
| Chipset |
Intel® B760 Chipset |
| Memory |
1x 16GB UDIMM DDR5-5600 |
| Memory Slots |
Two DDR5 UDIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5600 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support |
Up to three drives, 1x 3.5"HDD + 1x 2.5"HDD + 1x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB • 2.5" HDD bay is only for customer self upgrade |
| Card Reader |
3-in-1 Card Reader |
| Optical |
DVD±RW |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
2Wx1 |
| Power Supply |
260W 90% |
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, Turkish |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
None |
| Expansion Slots |
- One PCIe® 3.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
- One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
- Two M.2 slots (one for WLAN, one for SSD)
|
| Case Color |
Black |
| System Fan |
None |
| Toolless Chassis Screw |
Toolless Chassis Screw |
| Pen |
Pen Not Supported |
| Form Factor |
Tower (13.6L) |
| Dimensions (WxDxH) |
145 x 294 x 340 mm (5.71x 11.57 x 13.39 inches) |
| Weight |
Around 5.6 kg (12.35 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Ethernet |
RTL8111K, 1x RJ-45 |

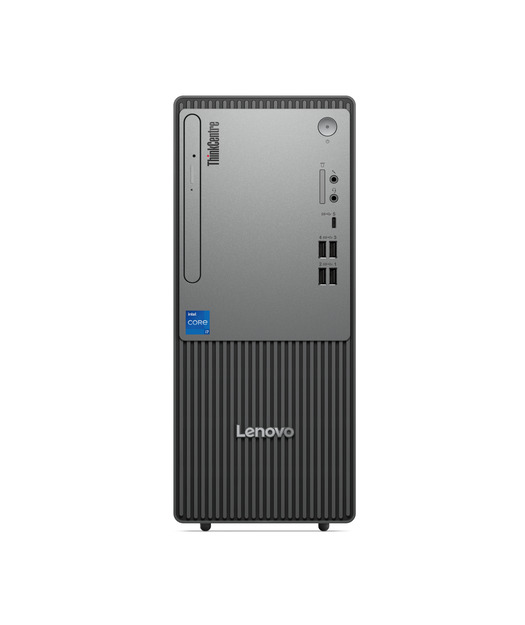

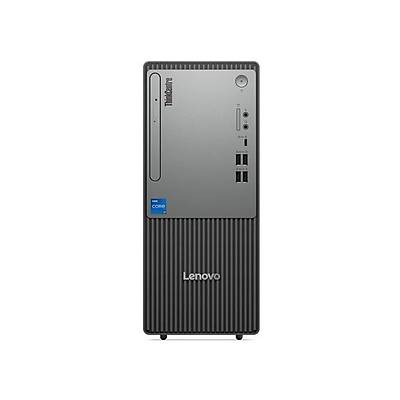

| Front Ports |
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

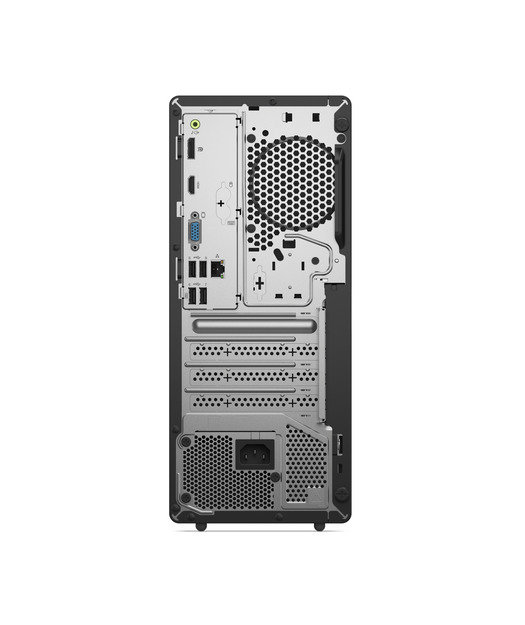

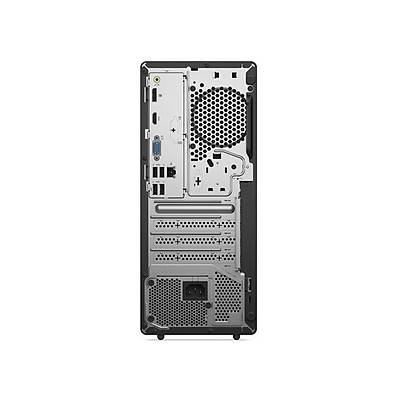

| Rear Ports |
- 4x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4a (HBR2)
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified |
| Physical Locks |
- Kensington® Security Slot™
- Padlock Loop
|
| Smart Cable Clip |
None |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY |
| System Management |
None |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
2Y Courier/Carry-in upgrade from 1Y Courier/Carry-in |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0
- EPEAT™ Silver Registered
- RoHS / WEEE / REACH
- TCO Certified 9.0
|
| Other Certifications |
- |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Turkish / English |
| Bundled Software |
None |
| ACCESSORIES |
| Bundled Accessories |
None |
| MODEL INFORMATION |
| Model |
12UB001FTR |
| Machine Type |
12UB |
| Region |
EET |
| Country/Region |
Türkiye |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0198155250132 |
| Announce Date |
2024-08-23 |
| End of Support |
2031-02-15 |
