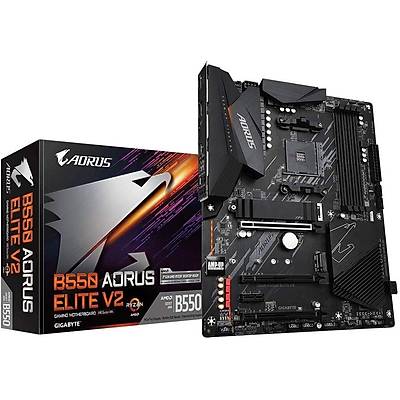

GIGABYTE B550 AOR ELITEV2 MAB AMD B550-AOR-ELITEV2 4733MHz OC DDR4 AM4 M.2 HDMI DisplayPort ATX Anakart
Ürünün stoğu tükenmiştir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
Teknik Ayrıntılar
Detaylı Bilgiler| CPU | AMD Socket AM4, support for AMD Ryzen™ 5000/5000 G/4000 G/3000/3000 G Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) Supports DDR4 4733(O.C.) ~ 2133 MHz, dual channel, ECC & non-ECC, XMP |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DisplayPort, max 5120x2880@60Hz (DP 1.4, HDCP 2.3, HDR) - 1 x HDMI, max 4096x2160@60Hz (HDMI 2.1, HDCP 2.3, HDR) Maximum shared memory: 16 GB |
| Audio | Realtek® ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIEX16, PCIe 4.0 x16) Chipset: 1 x PCIe x16 (PCIEX2, PCIe 3.0 x2), 1 x PCIe x16 (PCIEX1_2, PCIe 3.0 x1), 1 x PCIe x1 (PCIEX1_1, PCIe 3.0 x1) |
| Storage Interface | CPU: 1 x M.2 (M2A_CPU, 2242/2260/2280/22110, PCIe 4.0/SATA) Chipset: 1 x M.2 (M2B_SB, 2242/2260/2280/22110, PCIe 3.0/SATA), 4 x SATA 6Gb/s (RAID 0/1/10) |
| USB | CPU: 2 x USB 3.2 Gen 2 Type-A (red, for Ryzen 5000/3000 only), 2 x USB 3.2 Gen 1 Chipset: 1 x USB Type-C Gen1, 3 x USB 3.2 Gen1, 2 x USB 2.0/1.1 USB2.0 Hub: 4 x USB 2.0/1.1 internal headers |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, CPU/system/water-cooling fan headers, 2 x M.2 sockets, 4 x SATA, CPU cooler/RGB headers, 2 x addressable LED, 2 x RGB LED, front panel/audio/USB Type-C Gen1 headers, TPM, Clear CMOS |
| Back Panel | 1 x DisplayPort, 1 x HDMI, 2 x USB 3.2 Gen2 Type-A / USB 3.2 Gen1 (red), 3 x USB 3.2 Gen1, 2 x USB 2.0/1.1, 1 x Q-Flash Plus, 1 x RJ-45, 1 x optical S/PDIF, 5 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Overheating & Fan fail warnings, Fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash / Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |

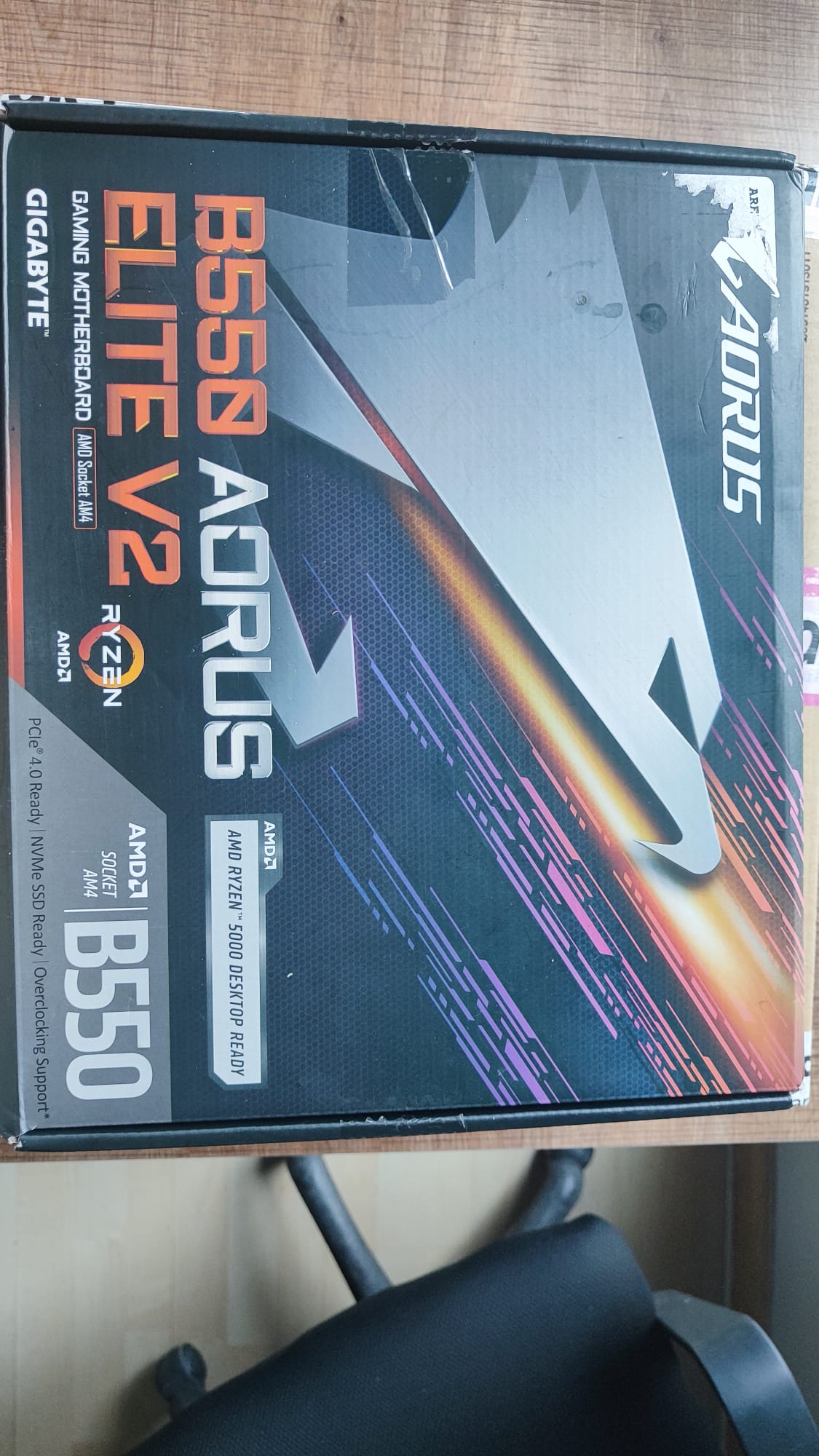

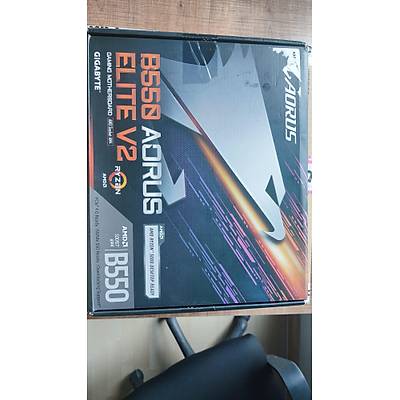

* KUTUSU AÇILMIŞ ÜRÜNDÜR
| Diğer Özellikler | |
|---|---|
| Stok Kodu | B550-AOR-ELITEV2 |
| Marka | GIGABYTE |
| Stok Durumu | Ürün tükenmiştir |
